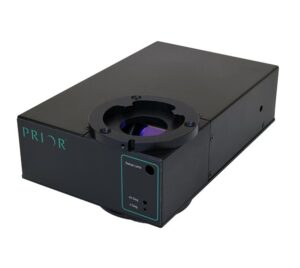

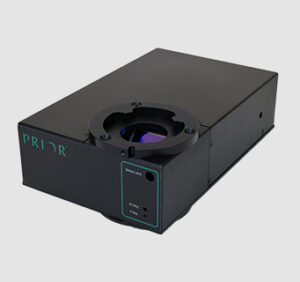

PureFocus™690 Laser Autofocus System
Hardware Laser Autofocus for Raman and IR Microscopy
PureFocus690 combines advanced optics and intelligent microprocessing with a 690 nm laser. Designed primarily for infrared imaging, the system will transmit up to 1100 nm and all the major Raman microscopy excitation wavelengths.
It provides a real-time focus system for infinity-corrected optical systems and offers sample detection, dynamic power adjustment, and long focus recapture range.
A motorized offset lens allows adjustment of the imaging depth into the sample, continuously holding the precise distance between the imaging focal point and a reference interface of choice or enabling different discrete image planes to be acquired using the same interface.
Designed for versatility and mounted in the infinity space, it is compatible with most brands of commercial microscopes, Prior’s OpenStand imaging platform, Queensgate piezo devices, and can be adapted for third-party focus actuators.
- Rapid automated focus recovery for numerous applications.
- Integrated stepper motor driver and interface to Piezo and other actuators via 0-10 V analog output.
- Easily adapted to any infinity optical system, both upright and inverted.
- Stores and recalls multiple objective-specific parameters for multi-objective use.
- Customizable optics for specific imaging applications.
| Dichroic clear aperture, diameter | 32 mm |
|---|---|
| Focus accuracy | 20 % of DOF |
| Laser module mass | 1.5 kg |
| Laser optical output | < 0.77 mW |
| Laser class | Class 1 |
| Laser wavelength | 690 nm |
| Surface tracking method | Point on surface tracking |
| Typical update rate | 1 kHz |
| Transmitted wavelength range | 385-650 nm | 730-1100 nm |
| Capture speed (5x, 0.13NA) | < 30 ms |
| Capture speed (10x, 0.4NA) | < 50 ms |
| Capture speed (20x, 0.5NA) | < 60 ms |
| Capture speed (40x, 0.95NA) | < 100 ms |
| Capture speed (100x, 0.9NA) | < 1500 ms |
| Capture range (5x, 0.13NA) | +/- 15000 µm |
| Capture range (10x, 0.4NA) | +/- 3000 µm |
| Capture range (20x, 0.5NA) | +/- 1000 µm |
| Capture range (40x, 0.95NA) | +/- 500 µm |
| Capture range (100x, 0.9NA) | +/- 100 µm |
| Dichroic clear aperture, diameter | 32 mm |
| Focus accuracy | 20 % of DOF |
| Laser module mass | 1.5 kg |
| Laser optical output | < 0.77 mW |
| Laser class | Class 1 |
| Laser wavelength | 690 nm |
| Surface tracking method | Averaged surface tracking |
| Typical update rate | 1 kHz |
| Transmitted wavelength range | 385-650 nm | 730-1100 nm |
| Capture speed (5x, 0.13NA) | < 30 ms |
| Capture speed (10x, 0.4NA) | < 50 ms |
| Capture speed (20x, 0.5NA) | < 60 ms |
| Capture speed (40x, 0.95NA) | < 100 ms |
| Capture speed (100x, 0.9NA) | < 1500 ms |
| Capture range (5x, 0.13NA) | +/- 15000 µm |
| Capture range (10x, 0.4NA) | +/- 3000 µm |
| Capture range (20x, 0.5NA) | +/- 1000 µm |
| Capture range (40x, 0.95NA) | +/- 500 µm |
| Capture range (100x, 0.9NA) | +/- 100 µm |
- PF209 PureFocus Setup Sample Slide
- PF300 PureFocus Setup Camera
- PF200 PureFocus Setup Target (RMS, W26, M32 threads)
- PF201 PureFocus Setup Target (M25, M27, M32 threads)
- PF404 Piezo Cable for PF850 15D to BNC
PureFocus690-EN-Datasheet.pdf
| Option | Manufacturer | Compatibility | Notes |
|---|---|---|---|
| PF690(M)+ LF335 | Evident/Olympus | BX53M, MX50, MX51, MX61, MX61L, MX63, MX63L | |
| PF690(M)+ LF320 | Nikon | LV100ND, LV100NDA, LV150N, LV150NA, L200N, L200ND, L300N, L300ND, Ni-U | |
| PF690(M)+ LF335 | Prior | OpenStand-U, OpenStand-M, OpenStand-L, OpenStand-V | |
| PF690(M)+ PF208 | Evident/Olympus | IX73 (2-deck) | Contact Prior Scientific if both decks are occupied |
| PF690(M)+ PF214 | Evident/Olympus | IX73 (1-deck) | |
| PF690(M)+ PF203 | Evident/Olympus | IX71 | |
| PF690(M)+ PF213 | Evident/Olympus | IX81 | |
| PF690(M)+ PF211 | Nikon | Ti-U | |
| PF690(M)+ PF212 | Nikon | Ti2-U, Ti2-A | Contact Prior Scientific for Ti2-E |
| PF690(M)+ PF210 | Evident/Olympus | BX51, BX53 | |
| PF690(M)+ LF341 | Zeiss | AxioSkop 40 | Please check with Prior Scientific for Axioimager models |
| PF690(M)+ LF312 | Leica | DM4000, DM5000, DM6000, DM6 |
