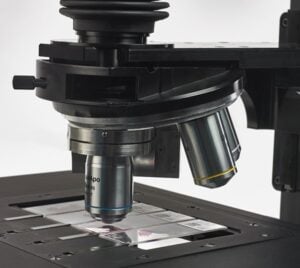

NanoScan OP400 piezo objective nanopositioning stage with 800 µm range for upright or inverted microscopy.

NanoScan OP400 Piezo Objective Scanner

Name: NanoScan OP400 Piezo Objective Scanner
Brand: Prior Scientific

Nanopositioning Stage With 400 µm Range for Upright Or Inverted Microscopy

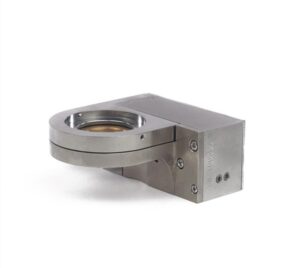

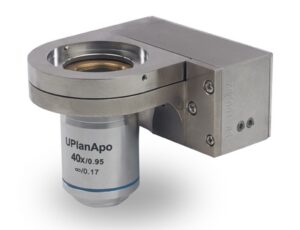

The NanoScan OP400 piezo-driven objective positioner is compatible with most commercial and customized microscopes. The stage features an M32 objective thread as standard with a wide range of adapters available.

Settings for inverted or upright operation and load capacity are set during manufacture and can be further tuned in the field to optimize for specific applications.

The OP400 provides the fastest step and settle time of any piezo-driven objective positioner with a range of up to 400 µm. It features capacitive feedback sensors that ensure exceptional repeatability and resolution, comparable with devices with shorter ranges.

0-500 g load as standard: a high load version (up to 1000 g) is available.

Enquire

Data sheet

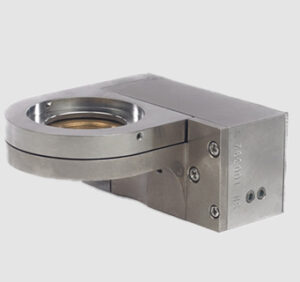

Stainless steel body providing greater mechanical stiffness for speed, load capacity and temperature stability
Flexure guided system with capacitive sensors provides high repeatability, exceptional linearity and faster cycle times
Tested to function for greater than 10 million full-range cycles
Top-tier performance characteristics over up to four times the travel distance
Connectors with built-in stage calibration provide plug and play electronics

Range	400 µm
Position Noise	0.7 nm
Repeatability	1.6 nm
Linearity	0.005%
Step settle	7 ms
Material	Aluminum/ Stainless Steel
Axis	Z
Thread	RMS, M25, W26, M27, M32
Load	0-500 g
Range	400 µm
Position Noise	0.7 nm
Repeatability	1.6 nm
Linearity	0.005%
Step settle	7 ms
Material	Aluminum/ Stainless Steel
Axis	Z
Thread	RMS, M25, W26, M27, M32
Load	500-1000 g
