FB204/5 Stage Focusing Mount for Reflected Light Applications
High Performance Linear Actuator With High Load Capacity

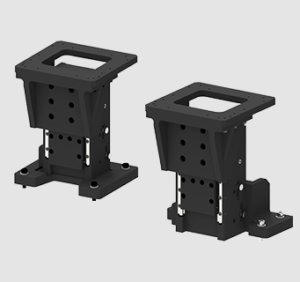

The FB204 and FB205 stage focusing mounts are compatible with Prior’s motorized stages for upright reflected microscopy. They are suitable for breadboard-mounted optical systems and customized microscopes.
They incorporate the high-performance FB203 linear actuator for 38 mm Z-axis travel and have a high load capacity of 14 kg for use with heavy samples or large stages.
FB204 is mounted in line with the axis of travel to provide a stable platform and maximize the height of the system.
The base of FB205 is offset from the linear axis for integration with space-constrained customized optical systems.
Either the FB204 or FB205, when combined with a Prior stage and controller, provide an extremely reliable XYZ platform for both academic and industrial research into applications such as materials chemistry or semiconductor development. Its simple but high-performance design makes it easy to integrate with gantry based optics.
- Long travel range for microscopy applications
- High load capacity
- Choice of mounting adapters
- Compatible with most Prior XY stages
- Sub-micron repeatability
| Dimensions (at min. range) | 177 x 155 x 143 mm |
|---|---|
| Resolution | 20 nm |
| Straightness (over full travel) | ± 3.5 µm |
| Full travel repeatability | ± 0.7 µm |
| Full Travel Metric Accuracy | < 5 µm |
| Travel range | 38 mm |
| Speed range (max load) | 1 – 14 mm/s |
| Encoder | No |
| Max load | 14 kg |
| Mounting method | In-line with travel |
| Drive mechanism | Zero backlash, recirculating ball screws |
| Cable length | 1 m |
| Dimensions (at min. range) | 180 x 163 x 144 mm |
| Resolution | 20 nm |
| Straightness (over full travel) | ± 3.5 µm |
| Full travel repeatability | ± 0.7 µm |
| Full Travel Metric Accuracy | < 5 µm |
| Travel range | 38 mm |
| Speed range (max load) | 1 – 14 mm/s |
| Encoder | No |
| Max load | 14 kg |
| Mounting method | Offset from travel |
| Drive mechanism | Zero backlash, recirculating ball screws |
| Cable length | 1 m |
Contact us for accessories information.
