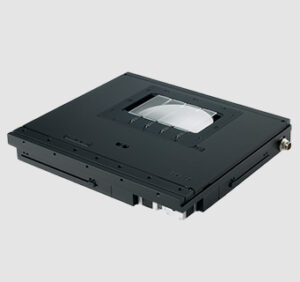

ProScan H101E1F Encoded Motorized XY Stage
Flat Top High Resolution Stage for Upright Microscopes (114 mm x 75 mm)
The H101E1F is a motorized XY stage for upright microscopes and is fully customizable for integration into OEM devices.
It provides exceptional long-range repeatability, using linear encoders together with a 1 mm pitch ballscrew and 200-step motor drive configuration. Prior’s patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.
A slim profile with a completely flat top plate allows easy access to the sample for loading and compatibility with a wide range of optics.
The H101E1F accommodates a variety of specimen types including glass slides, multiwell plates, semiconductor wafers, and metallurgical samples.
See the product compatibility tab for the full list of options available.
- Easy to integrate into customized imaging solutions
- 100 nm linear encoders for enhanced repeatability
- High step resolution and accuracy
- Aesthetic and user-friendly flat top design
- Intelligent Scanning Technology™ (US Patent 7,330,307)
| Travel range | 114 mm x 75 mm |
|---|---|
| Unidirectional repeatability | < 0.3 µm |
| Bidirectional repeatability | < 0.5 µm |
| Metric accuracy | 0.08 µm/mm |
| Full travel metric accuracy | < 6.5 µm |
| Resolution | 0.1 µm |
| Squareness | < 25 arcsec |
| Maximum velocity | 30 mm/s |
| Maximum load | 10 kg |
| Encoders | 0.1 µm linear encoders |
| Motor type | 200 step |
| Screw pitch | 1 mm |
| Weight | 5 kg |
- H230F Aluminum insert plate for H101F stages
- H220F Glass insert plate for H101F stages
- H224F Single slide holder for new flat H101 stage
- H234F 4 X slide holder for new flat H101 stage
H101N1F-EN-Datasheet.pdf
H101E1F-REFERENCE-PART-NONAMES.zip
H101E1F-REFERENCE-IGES.zip
| Option | Manufacturer | Compatibility | Notes |
|---|---|---|---|
| H101E1F | Prior | OpenStand-U, OpenStand-M, OpenStand-L |
