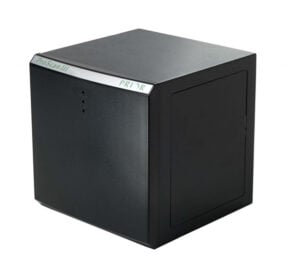

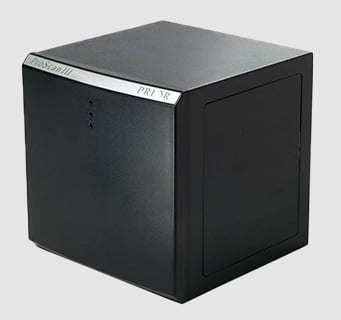

ProScan III Multi-Axis Controller
Compact Controller For Up To 16 Stepper Motor Axes
The ProScan III system can control up to 16 individual stepper motor axes. It is the basis for Prior’s patented Intelligent Scanning Technology (IST), which greatly enhances the individual performance of each ProScan XY stage.

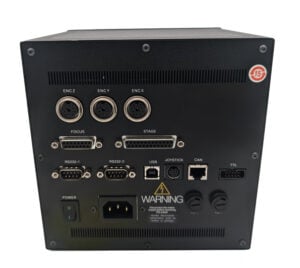

The advanced internal software allows for simple control of all accessories via Prior’s CS200 Joystick, RS232, or USB, and an SDK is supplied for easy integration into third-party software. External components, such as cameras, can also be controlled via TTL. The ProScan III is also compatible with Windows, Linux and Mac.
The compact modular design minimizes the footprint of the controller and enables users to include additional functionality according to their application for easy expansion. The add-on control boxes are stacked vertically to maximize bench space.
The ProScan III is compatible with numerous microscopy software packages, including MicroManager, Evident/Olympus CellSens and PRECiV, and Nikon NIS Elements (appropriate package required).
- Compact, space-saving design
- Control up to 16 axes
- Intelligent Scanning Technology (IST)™ (US Patent 7,330,307)
- Programmable TTLs
- Proven control system for microscopy
| Hardware interfaces | Stepper Motor XY stages, Z axis |
|---|---|
| Base controller/add-on | Base Controller |
| Hardware interfaces | Stepper Motor XY stages, Z axis, Encoders |
| Base controller/add-on | Base Controller |
| Hardware interfaces | Stepper Motor XY stages, Z axis, Filter wheels, shutters, OEM axes |
| Base controller/add-on | Base Controller |
| Hardware interfaces | Stepper Motor XY stages, Z axis, Filter wheels, shutters, OEM axes, Encoders |
| Base controller/add-on | Base Controller |
| Hardware interfaces | Filter wheels, shutters |
| Base controller/add-on | Base Controller |
| Hardware interfaces | Filter wheels, shutters and Z axis |
| Base controller/add-on | Base Controller |
| Hardware interfaces | Linear Motor XY stages, Z axis |
| Base controller/add-on | Base Controller |
| Hardware interfaces | Linear Motor XY stages, Z axis, Filter wheels, shutters, OEM axes |
| Base controller/add-on | Base Controller |
| Hardware interfaces | Filter wheels, shutters, OEM axes |
| Base controller/add-on | Add-on control box |
| Hardware interfaces | Prior LEDS units |
| Base controller/add-on | Add-on control box |
| Hardware interfaces | Trigger output from encoders |
| Base controller/add-on | Add-on control box |
- H247RA Proscan Stage Cable Right Angled
- HH411 Linear Stage Cable (Gold)
- HF300 Filter wheel cable
- H276 Null Modem RS232 9F-9F Cable
ProScanIII_Brochure-1.pdf
Evident-Olympus-EN-US-Sales-Guide.pdf
Nikon-EN-US-Sales-Guide.pdf
Contact us for compatibility information.
