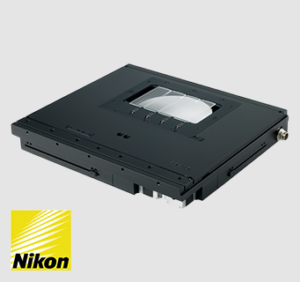

ProScan H101E1F (Nikon) Encoded Motorized XY Stage
Flat Top High Resolution Stage for Nikon Upright Microscopes (114 mm x 75 mm)
The H101E1F (Nikon) motorized XY stage has been adapted for numerous Nikon upright microscopes.
It provides exceptional long-range repeatability, using linear encoders together with a 1 mm pitch ballscrew and 200-step motor drive configuration. Prior’s patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.
A slim profile with a completely flat top plate allows easy access to the sample for loading and compatibility with a wide range of optics.
The H101E1F accommodates a variety of specimen types including glass slides, multiwell plates, semiconductor wafers, and metallurgical samples.
This stage is compatible with Nikon NIS Elements software (appropriate package required).
See the product compatibility tab for the full list of options available.
- Compatible with numerous Nikon systems across all applications
- 100 nm linear encoders for enhanced repeatability
- High step resolution and accuracy
- Aesthetic and user-friendly flat top design
- Intelligent Scanning Technology™ (US Patent 7,330,307)
| Travel range | 114 mm x 75 mm |
|---|---|
| Unidirectional repeatability | < 0.3 µm |
| Bidirectional repeatability | < 0.5 µm |
| Metric accuracy | 0.08 µm/mm |
| Full travel metric accuracy | < 6.5 µm |
| Resolution | 0.1 µm |
| Squareness | < 25 arcsec |
| Maximum velocity | 30 mm/s |
| Maximum load | 10 kg |
| Encoders | 0.1 µm linear encoders |
| Motor type | 200 step |
| Screw pitch | 1 mm |
| Weight | 5 kg |
- H230F Aluminum insert plate for H101F stages
- H220F Glass insert plate for H101F stages
- H224F Single slide holder for new flat H101 stage
- H234F 4 X slide holder for new flat H101 stage
H101N1F-EN-Datasheet.pdf
Nikon-EN-US-Sales-Guide.pdf
H101P1F_H101_STAGE-PART-NONAMES.zip
H101P1F_H101_STAGE-IGES.zip
| Option | Manufacturer | Compatibility | Notes |
|---|---|---|---|
| H101E1Ni | Nikon | 50i, 80i, Ni-E, Ni-U, Ni-L, Ci-E, Ci-L, Ci-S | Requires non-rotating SS substage |
| H101E1Ci | Nikon | 80i, 90i, Ni-E, Ni-U, Ni-L | Requires rotating SSR substage |
| H101E1AZEP | Nikon | AZ100 | Requires non-rotating SS substage |
| H101E1F | Nikon | SMZ18, SMZ25, SMZ800, SMZ1000, SMZ1270, SMZ1500 | Requires HSMZ1825 adapter from Prior and a P2- or P- microscope base. |
