NanoScan OP200 Piezo Objective Scanner
Nanopositioning Stage With 200 µm Range for Upright Or Inverted Microscopy

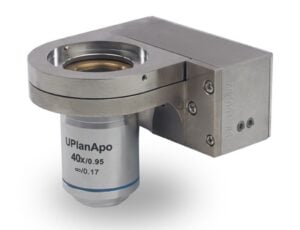

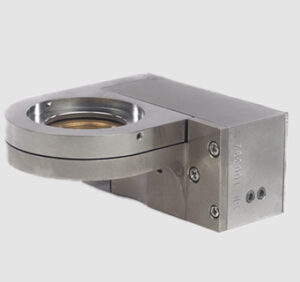

The NanoScan OP200 piezo-driven objective positioner is compatible with most commercial and customized microscopes. The stage features an M32 objective thread as standard with a wide range of adapters available.
Its high stiffness (1.3 N/µm) provides class-leading step settle performance over a range of up to 200 µm. It features capacitive feedback sensors that ensure exceptional repeatability and resolution.
Settings for inverted or upright operation and load capacity are set during manufacture and can be further tuned in the field to optimize for specific applications.
Customized mounting and objective holders for OEM applications are available on request.
0-500 g load as standard. High and custom load tuning is available on request.
- 200 μm closed-loop travel range (260 μm open loop range).
- High-stiffness (1.3 N/um) provides class-leading step-settle performance.
- Stainless steel construction provides greater mechanical stiffness and temperature stability.
- Capacitive positioning sensors used to give sub-nanometer positioning and the best resolution, stability, and repeatability.
- Connectors with built-in stage calibration provide plug-and-play electronics that can be interchanged, minimizing system downtime.
| Material | Stainless Steel |
|---|---|
| Stage Mass | 400 g |
| Closed Loop Range | 200 µm |
| Resolution | 0.4 nm under 150 g load |
| Linearity | 0.01% |
| Repeatability | 1 nm slow PID, 50 µm step, 1SD |
| Max. Objective Load | 500 g (higher loads on request) |
| Loaded Resonant Frequency | 272 Hz under 150 g load |
| 5% Settle 0.5 µm Step 150 g/250 g/500 g Load | 6 ms / 9 ms / 12 ms |
| 0.5% (500 nm) Settle 100 µm Step 150 g/250 g/500 g Load | 18 ms / 20 ms / 30 ms |
| Cable Length | 2 m |
| Objective Clearance | 40 mm |
| Optical Path Length Extension | 13 mm. 12 mm with M32 adapter |
- QG-OP-MIC-RMS OP microscope adapter for RMS threads
- QG-OP-MIC-M25 OP microscope adapter for M25 threads
- QG-OP-MIC-W26 OP microscope adapter for W26 threads
- QG-OP-MIC-M27 OP microscope adapter for M27 threads
- QG-OP-MIC-M32 OP microscope adapter for M32 threads
OP200-EN-Datasheet.pdf
OP200INSTALLATIONDRAWING.pdf
Evident-Olympus-EN-US-Sales-Guide.pdf
Nikon-EN-US-Sales-Guide.pdf
Contact us for compatibility information.
