NanoScan SP Z Series Piezo Z-Axis Stages
Nanopositioning Stages With 200 µm – 800 µm Closed-Loop Ranges

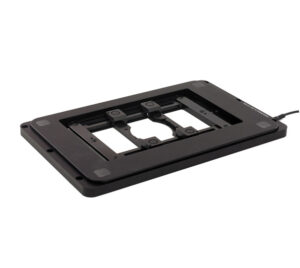

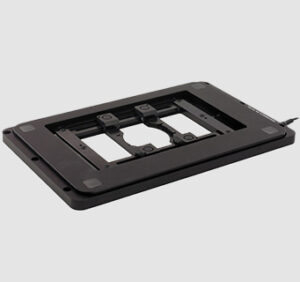

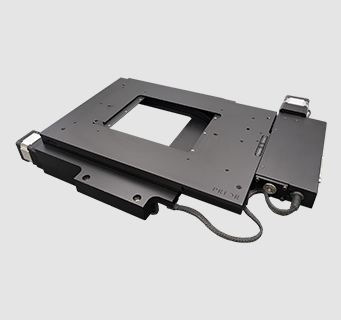

The NanoScan SP Z Series of piezo Z-axis stages offers 200 µm, 400 µm, 600 µm and 800 µm closed-loop ranges. It is compatible with Prior’s motorized microscope stages and common commercial microscopes.
In terms of velocity, settle time, resolution, and repeatability the SP Series out-performs other market-leading piezo stages. This is due to their high inherent resonant frequency and unique control architecture.
The stages are ultra-slim for easy access to load samples or for integrating with existing systems.
The NanoScan SP Series is suitable for challenging applications such as multiphoton microscopy and whole-organism imaging.
Delivered with Queensgate’s low-noise NPC series controller, the NanoScan SP Series can be configured in the field to work with different loads and performance requirements.
High-precision piezo-driven XY translation from Queensgate is also available. Contact us to learn more.
- Selection of travel ranges from 200 μm to 800 μm
- Capacitive positioning sensors giving market-leading sub-nanometer resolution
- Step settle times of <10 ms
- Loads of up to 500 g (higher loads on request)
- Connectors with built-in stage calibration provide plug and play electronics which can be interchanged
- Tested to function for greater than 10 million full-range cycles
| Range | 200 µm |
|---|---|
| Position Noise | 0.5 nm |
| Repeatability | 3 nm |
| Linearity | 0.25% |
| Step settle | 7.5 ms |
| Material | Aluminum/ Stainless Steel |
| Size (L x W x H) | 260 x 164 x 13.7 mm |
| Axis | Z |
| Range | 400 µm |
| Position Noise | 0.7 nm |
| Repeatability | 3 nm |
| Linearity | 0.2% |
| Step settle | 8 ms |
| Material | Aluminum/ Stainless Steel |
| Size (L x W x H) | 260 x 164 x 13.7 mm |
| Axis | Z |
| Range | 600 µm |
| Position Noise | 0.7 nm |
| Repeatability | 3 nm |
| Linearity | 0.2% |
| Step settle | 9 ms |
| Material | Aluminum/ Stainless Steel |
| Size (L x W x H) | 260 x 164 x 13.7 mm |
| Axis | Z |
| Range | 800 µm |
| Position Noise | 1.23 nm |
| Repeatability | 3 nm |
| Linearity | 0.2% |
| Step settle | 10 ms |
| Material | Aluminum/ Stainless Steel |
| Size (L x W x H) | 260 x 164 x 13.7 mm |
| Axis | Z |
- QGSP301XR SP Multiwell Holder XR
- QGSP302XR SP Universal Sample Holder XR
- QGSP303XR SP Single Slide Holder Suitable for 1"x3" and 2"x3" XR
- QG-UNIV-DISH-35mm Dish holder 33 to 35.3mm base diameter, fits in sample universal sample holder
- QG-UNIV-DISH-60mm Dish holder 55 to 60.3mm base diameter, fits in sample universal sample holder
NanoScan_SP_Series_EN_UK_Datasheet.pdf
SPSeriesInstallationDrawing.PDF
SAMPLEHOLDERINFOSP.pdf
SPSeriesDISH-HOLDER-INFO.pdf
Nikon-EN-US-Sales-Guide.pdf
Evident-Olympus-EN-US-Sales-Guide.pdf
Contact us for compatibility information.
